Event Stage Lighting 17r Beam Spot Wash 3 In 1 350w Moving Head Beam Light
The 350 watt 17R moving head is ideal choose for applications in lighting show, ceremony, television, disco, dance halls, nightclubs, large-scale performances and other professional venues. Being top supplier of moving head in China,XINGCHEN can provide other moving head beam fixtures besides 17r beam spot wash and professional lighting solutions.
350 watt 17R is a a high-end version 17r 350w beam spot wash 3in1 moving head light. XINGCHEN 350w 17r moving head integrates advanced electronic control technology, high precision optical lens and other top-class quality materials.
Housing a 350 watt 17R lamp, the 17r 350w beam spot wash light has a very strong output and long throw. The moving head 17r is equipped with 14 fixed gobos plus open, 9 rotating gobos plus open and 14 colors plus open. Additional effects include 8-facet and 16-facet circular rotating prisms in both directions, electronic linear control focus, pan / tilt position correction and an easy to navigate touchscreen LCD display, etc. The frost filter of 17r 350w beam spot wash with 3.8°-45° washing is adjustable, which makes the wash moving head be more fascinating.
There are 16 and 24 DMX channels for users freely selection. We provide optional 3 pin connector. The 17r 350w beam spot is with built-in overheat protection, triggered high voltage protection, which can prevent the fixture from damage.
Product Description
POWER SUPPLY
Input power:AC110-240V 50/60 Hz
LIGHT SOURCE
Lamp: MSD 17R 350W, 1,500hr
Power Consumption: 540W
OPTICS
Lens: Anti-reflective coated lens
YiLong optic system
Output Lux: 10,500lux at 20 meters
COLOR SYSTEM
Colors:14 colors+white
GOBO SYSTEM
Gobo:14 fix gobos+white,9 rotation gobos+ white
EFFECTS SECTION
8+16prism
Zoom: 9°~27° linear zoom
5°-32° wash angle
DMX Channels: 2DMX Modes16/24 Channels DMX
Control board with LCD display
MOVING BODY
Pan and tilt movement: 8 and 16 bit resolution
For smooth and precise motion
Movement: Pan: 540°optional, Tilt: 270°
Speed of pan/tilt movement adjustable
Scan position memory, auto reposition after unexpected movement
WEIGHT&SIZE
Weight: 19.8kgs
Dimensions: 50*48*59cm/pc
|
|

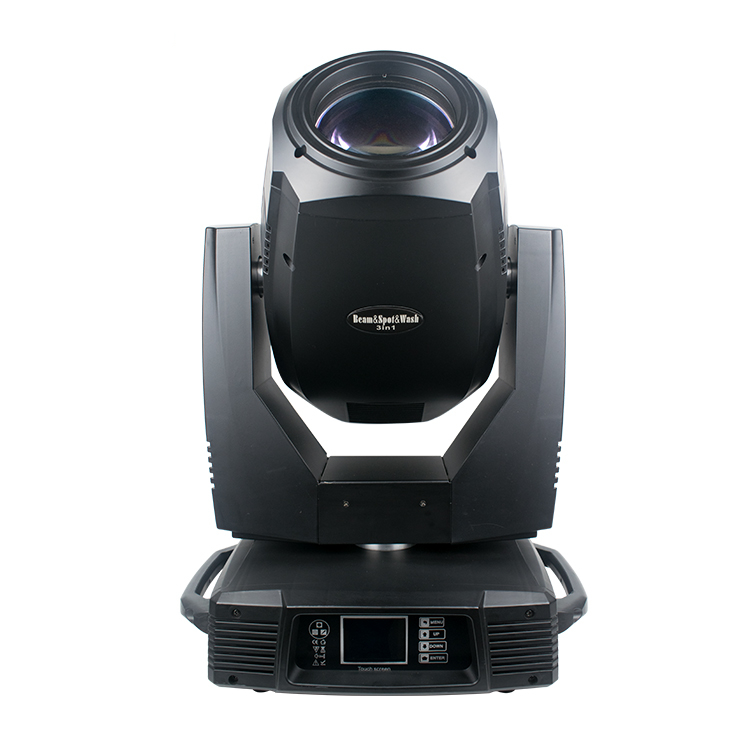

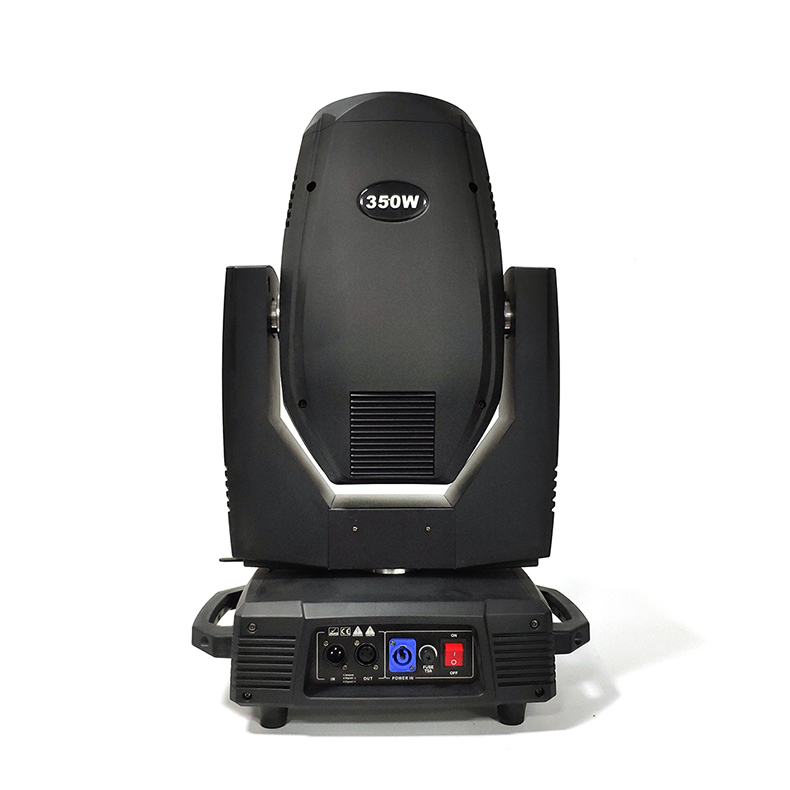

Event Stage Lighting 17r Beam Spot Wash 3 In 1 350w Moving Head Beam Light Images
|
